Site ID: 128 Lat. 30.1305 China Hubei
River: Shahu Long. 113.6530
Site name: Shahu Contributing area: 3047 km2 Ratio to Comparison Station: 0.01
Latest measurement: 2-Sep-11 Mean annual runoff: 6791 mm (2003-2009)
Hydrologic status: 2 Normal flow Total runoff this year (2010): 9693.7 mm
Latest M/C ratio: 1.46 Seven day total: 273.0 mm
Estimated current discharge: 1482 m3/sec Percent of mean 7-day total: 137.3 % (today's value compared to mean for same period, 2003-2009)
Ice-cover determination: 5 yr recurrence flood: 3003 m3/sec (from Log Pearson III analysis)
Status Codes:  1 = Low flow or ice, 2 = Normal flow, 3 = Flood, 4 = Major Flood 3009 m3/sec (from Gumbel Extreme Value analysis)
Comparison Station Information:  Pakse (2469260)           Contributing Area:   sq mi 536010 sq km
(Data from this gaging station are used for the calibration to discharge, with an adjustment for different contributing areas)
Notes: Calibration to nearby ground station has not yet been accomplished.

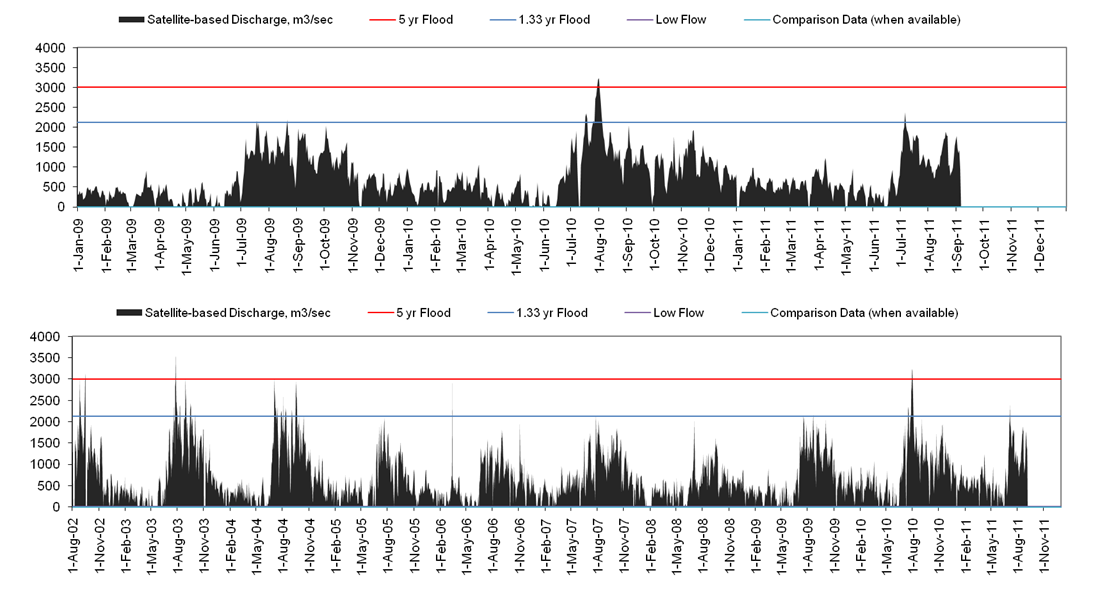

Discharge and runoff, based on satellite remote sensing (NASA AMSR-E data)
(For U.S, sites, nearby ground station discharge may also be shown)
Annual  Monthly Total Runoff (mm), computed from above satellite-based discharge data
Runoff
(mm) Jan Feb Mar April May June July Aug Sept Oct Nov Dec
4291 2002 no data no data no data no data no data no data no data 1156.8 1150.1 1048.5 617.4 318.5
8298 2003 343.8 260.5 184.9 82.1 131.9 358.9 1564.5 1600.7 1465.0 1238.6 598.5 468.6
8483 2004 248.8 270.2 327.2 180.8 188.3 398.2 1665.2 1338.4 1533.8 1212.9 609.2 509.9
6137 2005 345.9 189.5 329.4 315.6 133.0 466.1 1233.0 813.7 835.5 481.1 576.6 417.6
4679 2006 218.4 139.8 426.1 225.6 103.9 451.0 962.8 798.7 873.0 479.2 0.0 0.0
7490 2007 237.0 215.9 281.8 434.9 521.6 537.1 965.3 1163.6 986.3 1038.6 714.9 393.4
5286 2008 181.0 259.3 330.8 219.3 240.7 337.9 603.9 787.3 844.8 580.7 441.7 458.0
7161 2009 320.3 220.9 298.7 183.7 202.6 268.7 1226.3 1185.2 1171.0 1100.9 522.6 460.5
9694 2010 388.2 402.9 506.1 200.8 222.9 340.0 1507.4 1364.8 966.7 868.1 1085.1 1840.8
Mean Annual Runoff (mm): 6791 Standard Deviation: 6.4
Trend in Annual Runoff (slope):  5.9

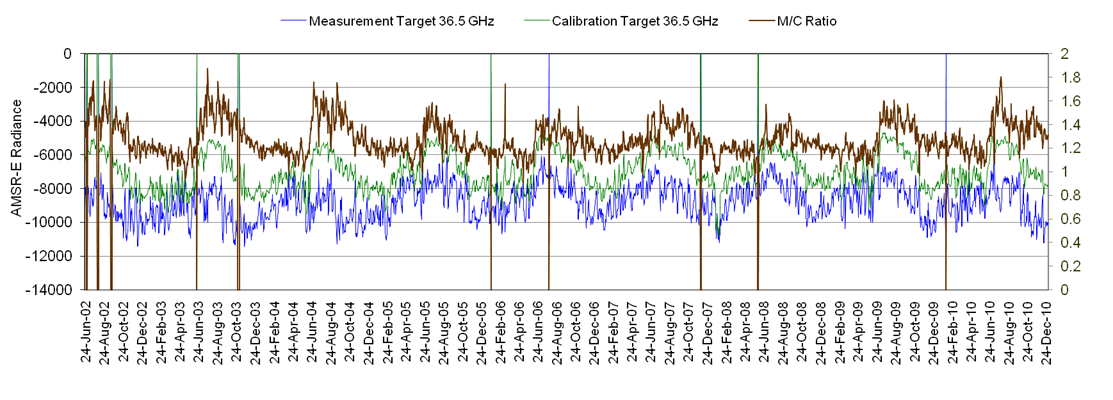

Discharge is estimated via a rating equation directly from the remote sensing data (M/C ratio) shown below.
Explanation:   Green line records upwelling microwave emission from within 5 km radius of a calbration land target; blue line is emission from within 5 km radious of the measurement target centered over the river.
Brown line is their ratio (M/C; scale on right) and is used to estimate river discharge via a rating equation.
Rating equations are being developed and applied on an individual basis. For calibration status, see "notes" entry, above.
GoogleEarth View of Measurement Site
Return
Estimated
Disharge
Data
Date m3/sec
22-Jul-02 2666
23-Jul-02 2666
24-Jul-02 2093
25-Jul-02 1603
26-Jul-02 1202
27-Jul-02 989
28-Jul-02 1144
29-Jul-02 1143
30-Jul-02 1539
31-Jul-02 1539
1-Aug-02 1288
2-Aug-02 1288
3-Aug-02
4-Aug-02
5-Aug-02
6-Aug-02
7-Aug-02
8-Aug-02
9-Aug-02 1437
10-Aug-02 1592
11-Aug-02 1306
12-Aug-02 1306
13-Aug-02 1491
14-Aug-02 1346
15-Aug-02 629
16-Aug-02 781
17-Aug-02 1019
18-Aug-02 1203
19-Aug-02 1772
20-Aug-02 1948
21-Aug-02 1698
22-Aug-02 1336
23-Aug-02 1330
24-Aug-02 1826
25-Aug-02 2102
26-Aug-02 3014
27-Aug-02 2494
28-Aug-02 2442
29-Aug-02 2306
30-Aug-02 2039
31-Aug-02 1807
1-Sep-02 1954
2-Sep-02 1674
3-Sep-02 1637
4-Sep-02 1830
5-Sep-02 1504
6-Sep-02 1369
7-Sep-02 1235
8-Sep-02 1375
9-Sep-02 1621
10-Sep-02 1621
11-Sep-02 2032
12-Sep-02 2343
13-Sep-02 2605
14-Sep-02 3114
15-Sep-02 2980
16-Sep-02
17-Sep-02
18-Sep-02
19-Sep-02
20-Sep-02
21-Sep-02 1048
22-Sep-02 1048
23-Sep-02 871
24-Sep-02 872
25-Sep-02 1346
26-Sep-02 1392
27-Sep-02 1428
28-Sep-02 1373
29-Sep-02 1287
30-Sep-02 1005
1-Oct-02 1108
2-Oct-02 1440
3-Oct-02 1756
4-Oct-02 1919
5-Oct-02 1731
6-Oct-02 1632
7-Oct-02 1310
8-Oct-02 1302
9-Oct-02 1137
10-Oct-02 1209
11-Oct-02 975
12-Oct-02 1193
13-Oct-02 1262
14-Oct-02 1274
15-Oct-02 1371
16-Oct-02 1371
17-Oct-02 1381
18-Oct-02 1215
19-Oct-02 1269
20-Oct-02 885
21-Oct-02 1034
22-Oct-02 1077
23-Oct-02 782
24-Oct-02 964
25-Oct-02 607
26-Oct-02 709
27-Oct-02 1256
28-Oct-02 1008
29-Oct-02 994
30-Oct-02 986
31-Oct-02 825
1-Nov-02 855
2-Nov-02 497
3-Nov-02 575
4-Nov-02 958
5-Nov-02 1367
6-Nov-02 1390
7-Nov-02 1589
8-Nov-02 1637
9-Nov-02 1664
10-Nov-02 1341
11-Nov-02 1525
12-Nov-02 1032
13-Nov-02 910
14-Nov-02 355
15-Nov-02 401
16-Nov-02 216
17-Nov-02 3
18-Nov-02 496
19-Nov-02 455
20-Nov-02 305
21-Nov-02 274
22-Nov-02 335
23-Nov-02 260
24-Nov-02 375
25-Nov-02 423
26-Nov-02 268
27-Nov-02 333
28-Nov-02 647
29-Nov-02 646
30-Nov-02 643
1-Dec-02 685
2-Dec-02 598
3-Dec-02 481
4-Dec-02 446
5-Dec-02 115
6-Dec-02 117
7-Dec-02 31
8-Dec-02 46
9-Dec-02 38
10-Dec-02 166
11-Dec-02 282
12-Dec-02 726
13-Dec-02 785
14-Dec-02 770
15-Dec-02 677
16-Dec-02 576
17-Dec-02 477
18-Dec-02 507
19-Dec-02 239
20-Dec-02 3
21-Dec-02 46
22-Dec-02 86
23-Dec-02 252
24-Dec-02 336
25-Dec-02 468
26-Dec-02 525
27-Dec-02 475
28-Dec-02 334
29-Dec-02 332
30-Dec-02 271
31-Dec-02 344
1-Jan-03 377
2-Jan-03 450
3-Jan-03 566
4-Jan-03 629
5-Jan-03 629
6-Jan-03 361
7-Jan-03 254
8-Jan-03 55
9-Jan-03 166
10-Jan-03 170
11-Jan-03 269
12-Jan-03 428
13-Jan-03 313
14-Jan-03 313
15-Jan-03 459
16-Jan-03 485
17-Jan-03 517
18-Jan-03 514
19-Jan-03 456
20-Jan-03 433
21-Jan-03 424
22-Jan-03 214
23-Jan-03 339
24-Jan-03 410
25-Jan-03 379
26-Jan-03 480
27-Jan-03 425
28-Jan-03 351
29-Jan-03 380
30-Jan-03 697
31-Jan-03 182
1-Feb-03 265
2-Feb-03 467
3-Feb-03 265
4-Feb-03 376
5-Feb-03 447
6-Feb-03 340
7-Feb-03 419
8-Feb-03 408
9-Feb-03 258
10-Feb-03 338
11-Feb-03 338
12-Feb-03 269
13-Feb-03 350
14-Feb-03 86
15-Feb-03 164
16-Feb-03 239
17-Feb-03 253
