Site ID: 120 Lat. 32.9753 China Anhui
River: Huai Long. 117.5235
Site name: Bengbu Contributing area: 122223 km2 Ratio to Comparison Station: 0.23
Latest measurement: 2-Sep-11 Mean annual runoff: 36 mm (2003-2009)
Hydrologic status: 2 Normal flow Total runoff this year (2010): 29.0 mm
Latest M/C ratio: 1.10 Seven day total: 0.0 mm
Estimated current discharge: 3 m3/sec Percent of mean 7-day total: 8.1 % (today's value compared to mean for same period, 2003-2009)
Ice-cover determination: 5 yr recurrence flood: 1593 m3/sec (from Log Pearson III analysis)
Status Codes:  1 = Low flow or ice, 2 = Normal flow, 3 = Flood, 4 = Major Flood 1588 m3/sec (from Gumbel Extreme Value analysis)
Comparison Station Information:  Pakse (2469260)           Contributing Area:   sq mi 536010 sq km
(Data from this gaging station are used for the calibration to discharge, with an adjustment for different contributing areas)
Notes: Calibration to nearby ground station has not yet been accomplished.

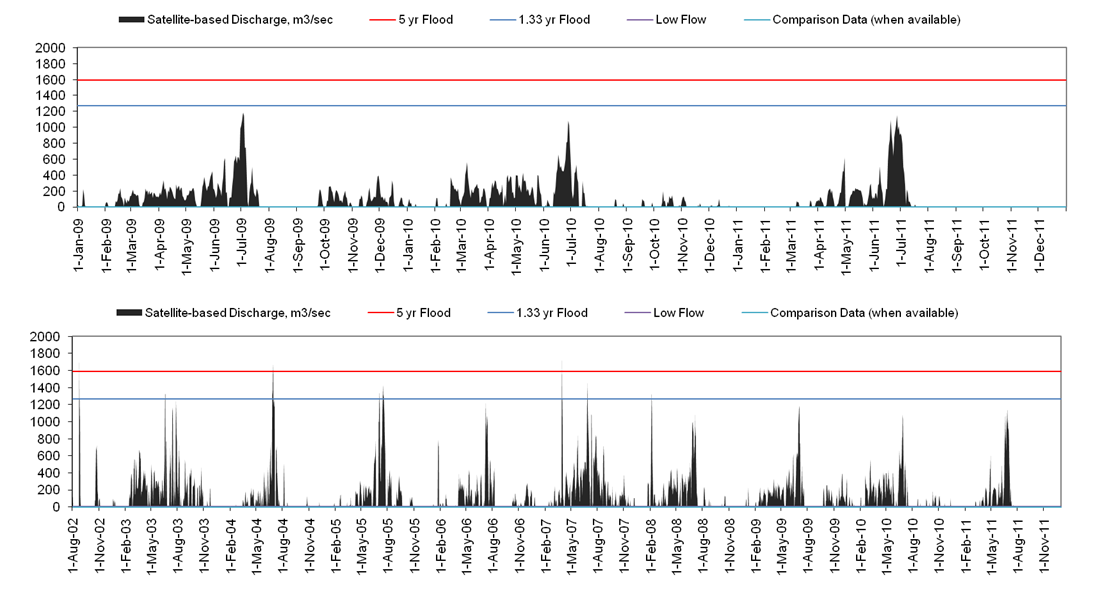

Discharge and runoff, based on satellite remote sensing (NASA AMSR-E data)
(For U.S, sites, nearby ground station discharge may also be shown)
Annual  Monthly Total Runoff (mm), computed from above satellite-based discharge data
Runoff
(mm) Jan Feb Mar April May June July Aug Sept Oct Nov Dec
8 2002 no data no data no data no data no data no data no data 3.9 0.1 3.2 0.3 0.4
50 2003 0.1 1.9 8.2 4.5 6.0 6.8 9.8 4.2 4.7 2.9 0.5 0.1
23 2004 0.1 0.1 0.9 1.7 2.4 9.9 6.1 1.0 0.1 0.3 0.1 0.1
36 2005 0.1 0.4 0.3 2.2 3.3 4.5 16.1 2.9 2.7 0.6 1.4 1.6
25 2006 2.0 0.6 0.1 3.8 3.0 3.0 9.8 1.6 0.1 0.9 0.0 0.0
51 2007 0.1 0.4 4.0 4.9 7.0 11.3 10.5 6.6 1.9 2.0 1.4 0.3
33 2008 1.0 5.0 1.6 5.3 4.5 8.6 5.6 0.9 0.1 0.4 0.1 0.2
34 2009 0.4 1.4 3.0 4.1 4.3 7.2 6.4 0.1 0.6 2.5 2.1 1.9
29 2010 0.3 2.0 4.4 4.8 4.7 7.7 2.7 0.2 0.3 0.9 0.4 0.6
Mean Annual Runoff (mm): 36 Standard Deviation: 6.4
Trend in Annual Runoff (slope):  5.9

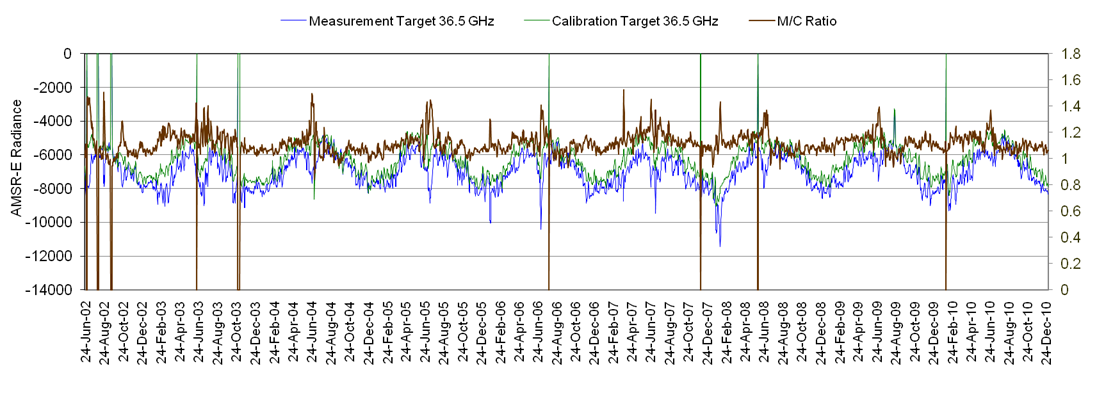

Discharge is estimated via a rating equation directly from the remote sensing data (M/C ratio) shown below.
Explanation:   Green line records upwelling microwave emission from within 5 km radius of a calbration land target; blue line is emission from within 5 km radious of the measurement target centered over the river.
Brown line is their ratio (M/C; scale on right) and is used to estimate river discharge via a rating equation.
Rating equations are being developed and applied on an individual basis. For calibration status, see "notes" entry, above.
GoogleEarth View of Measurement Site
Return
Estimated
Disharge
Data
Date m3/sec
22-Jul-02 193
23-Jul-02 193
24-Jul-02 169
25-Jul-02 120
26-Jul-02 3
27-Jul-02 3
28-Jul-02 3
29-Jul-02 3
30-Jul-02 22
31-Jul-02 3
1-Aug-02 116
2-Aug-02 116
3-Aug-02
4-Aug-02
5-Aug-02
6-Aug-02
7-Aug-02
8-Aug-02
9-Aug-02 3
10-Aug-02 3
11-Aug-02 3
12-Aug-02 3
13-Aug-02 3
14-Aug-02 3
15-Aug-02 3
16-Aug-02 3
17-Aug-02 3
18-Aug-02 3
19-Aug-02 3
20-Aug-02 3
21-Aug-02 3
22-Aug-02 3
23-Aug-02 3
24-Aug-02 1690
25-Aug-02 971
26-Aug-02 1381
27-Aug-02 1011
28-Aug-02 132
29-Aug-02 43
30-Aug-02 3
31-Aug-02 3
1-Sep-02 3
2-Sep-02 3
3-Sep-02 3
4-Sep-02 3
5-Sep-02 3
6-Sep-02 3
7-Sep-02 3
8-Sep-02 3
9-Sep-02 3
10-Sep-02 3
11-Sep-02 3
12-Sep-02 3
13-Sep-02 3
14-Sep-02 3
15-Sep-02 3
16-Sep-02
17-Sep-02
18-Sep-02
19-Sep-02
20-Sep-02
21-Sep-02 3
22-Sep-02 3
23-Sep-02 3
24-Sep-02 3
25-Sep-02 3
26-Sep-02 3
27-Sep-02 3
28-Sep-02 3
29-Sep-02 3
30-Sep-02 3
1-Oct-02 3
2-Oct-02 3
3-Oct-02 3
4-Oct-02 3
5-Oct-02 3
6-Oct-02 3
7-Oct-02 3
8-Oct-02 3
9-Oct-02 3
10-Oct-02 3
11-Oct-02 3
12-Oct-02 3
13-Oct-02 3
14-Oct-02 3
15-Oct-02 12
16-Oct-02 3
17-Oct-02 3
18-Oct-02 87
19-Oct-02 76
20-Oct-02 352
21-Oct-02 521
22-Oct-02 710
23-Oct-02 656
24-Oct-02 721
25-Oct-02 534
26-Oct-02 408
27-Oct-02 143
28-Oct-02 199
29-Oct-02 27
30-Oct-02 3
31-Oct-02 3
1-Nov-02 78
2-Nov-02 91
3-Nov-02 106
4-Nov-02 75
5-Nov-02 3
6-Nov-02 3
7-Nov-02 3
8-Nov-02 3
9-Nov-02 3
10-Nov-02 3
11-Nov-02 3
12-Nov-02 3
13-Nov-02 3
14-Nov-02 3
15-Nov-02 3
16-Nov-02 3
17-Nov-02 3
18-Nov-02 3
19-Nov-02 3
20-Nov-02 3
21-Nov-02 3
22-Nov-02 3
23-Nov-02 3
24-Nov-02 3
25-Nov-02 3
26-Nov-02 3
27-Nov-02 3
28-Nov-02 3
29-Nov-02 3
30-Nov-02 3
1-Dec-02 3
2-Dec-02 3
3-Dec-02 3
4-Dec-02 3
5-Dec-02 3
6-Dec-02 3
7-Dec-02 3
8-Dec-02 3
9-Dec-02 3
10-Dec-02 3
11-Dec-02 3
12-Dec-02 3
13-Dec-02 3
14-Dec-02 3
15-Dec-02 3
16-Dec-02 3
17-Dec-02 3
18-Dec-02 3
19-Dec-02 25
20-Dec-02 102
21-Dec-02 71
22-Dec-02 71
23-Dec-02 3
24-Dec-02 3
25-Dec-02 91
26-Dec-02 43
27-Dec-02 70
28-Dec-02 3
29-Dec-02 3
30-Dec-02 3
31-Dec-02 3
1-Jan-03 3
2-Jan-03 3
3-Jan-03 3
4-Jan-03 3
5-Jan-03 3
6-Jan-03 3
7-Jan-03 3
8-Jan-03 3
9-Jan-03 3
10-Jan-03 3
11-Jan-03 3
12-Jan-03 3
13-Jan-03 3
14-Jan-03 3
15-Jan-03 3
16-Jan-03 3
17-Jan-03 3
18-Jan-03 3
19-Jan-03 3
20-Jan-03 3
21-Jan-03 3
22-Jan-03 3
23-Jan-03 3
24-Jan-03 3
25-Jan-03 3
26-Jan-03 3
27-Jan-03 3
28-Jan-03 3
29-Jan-03 3
30-Jan-03 3
31-Jan-03 3
1-Feb-03 3
2-Feb-03 3
3-Feb-03 3
4-Feb-03 3
5-Feb-03 3
6-Feb-03 3
7-Feb-03 3
8-Feb-03 3
9-Feb-03 3
10-Feb-03 3
11-Feb-03 3
12-Feb-03 3
13-Feb-03 3
14-Feb-03 88
15-Feb-03 169
16-Feb-03 104
17-Feb-03 106
18-Feb-03 121
19-Feb-03 166
20-Feb-03 299
21-Feb-03 379
22-Feb-03 393
23-Feb-03 346
24-Feb-03 317
25-Feb-03 3
26-Feb-03 3
27-Feb-03 88
28-Feb-03 127
1-Mar-03 229
2-Mar-03 454
3-Mar-03 447
4-Mar-03 564
5-Mar-03 554
6-Mar-03 151
7-Mar-03 151
8-Mar-03 221
9-Mar-03 323
10-Mar-03 545
11-Mar-03 477
12-Mar-03 422
13-Mar-03 224
14-Mar-03 228
15-Mar-03 212
16-Mar-03 219
17-Mar-03 258
18-Mar-03 329
19-Mar-03 349
20-Mar-03 475
21-Mar-03 670
22-Mar-03 659
23-Mar-03 635
24-Mar-03 633
25-Mar-03 565
26-Mar-03 572
27-Mar-03 351
28-Mar-03 117
29-Mar-03 179
30-Mar-03 179
31-Mar-03 187
1-Apr-03 226
2-Apr-03 264
3-Apr-03 311
4-Apr-03 327
5-Apr-03 377
6-Apr-03 435
7-Apr-03 323
8-Apr-03 369
9-Apr-03 399
10-Apr-03 308
11-Apr-03 424
